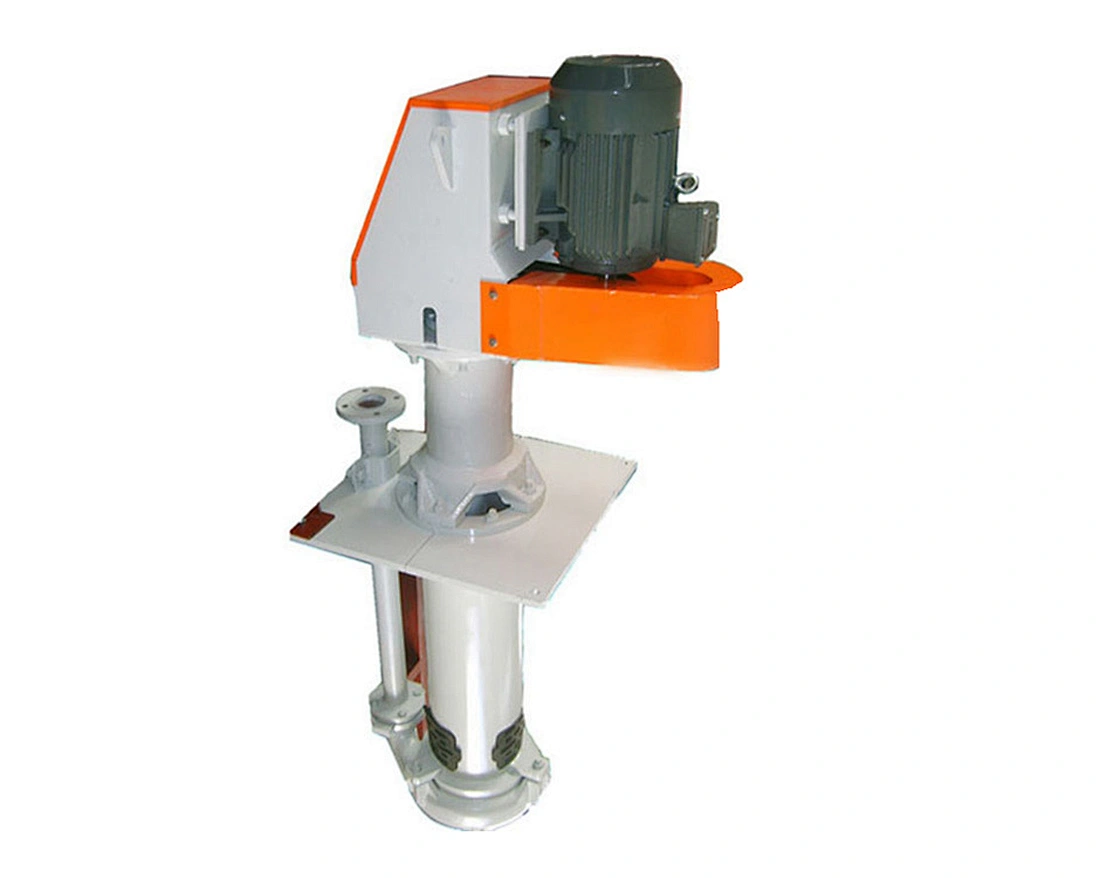

40PV-NP-SP Metal Lined Vertical Sump Slurry Pump
Naipu® 40PV-NP-SP vertical slurry pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NSP pump are made of abrasion-resistant metal. All parts of type NSP(R) pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.
40PV-NP-SP
EXW ,FOB , CIF
1 set
1000set / Month
Shijiazhuang , China
15-25Day
Quantity:
Naipu® 40PV-NP-SP vertical slurry pumps are vertical, centrifugal slurry pumps submerged in sump to work.They are designed for delivering abrasive,large particle and high density slurries.These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.Wet parts of type NSP pump are made of abrasion-resistant metal. All parts of type NSP(R) pump immersed in liquid are lined with rubber outer liner.They are suited to transport non-edge angle abrasive slurry.
Typical Applications---
- Sump drainage washdown
- Floor drainage
- Mill sumps
- Carbon transfer
- Monitoring
- Magnetite mixing
PERFORMANCE PARAMETERS
Type | Allowable Mating Max. Power(Kw) | Range Of Performance | Impeller | |||||
Capacity/Q | Head/m | Speed/rpm | Max Efficiency/% | No. of Vanes | Impeller Diameter/mm | |||
m³/hr | L/S | |||||||
40PV-NP-SP | 15 | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 5 | 188 |
Disclaimer:
* NaiPu® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
* NaiPu®40PV-NP-SP vertical slurry pumps and spares are only interchangeable with Warman® 40 PV-SP vertical slurry pumps and spares.
