          NAIPU PUMP , more than 30 years' experience in the production and supply of specialized slurry pumps and a complete range of pumping equipment grants NAIPU the ability to be in service for global clients of mining, quarrying, and power , dredging industries.

        The following is a case study of our cooperative customers：

PROJECTS

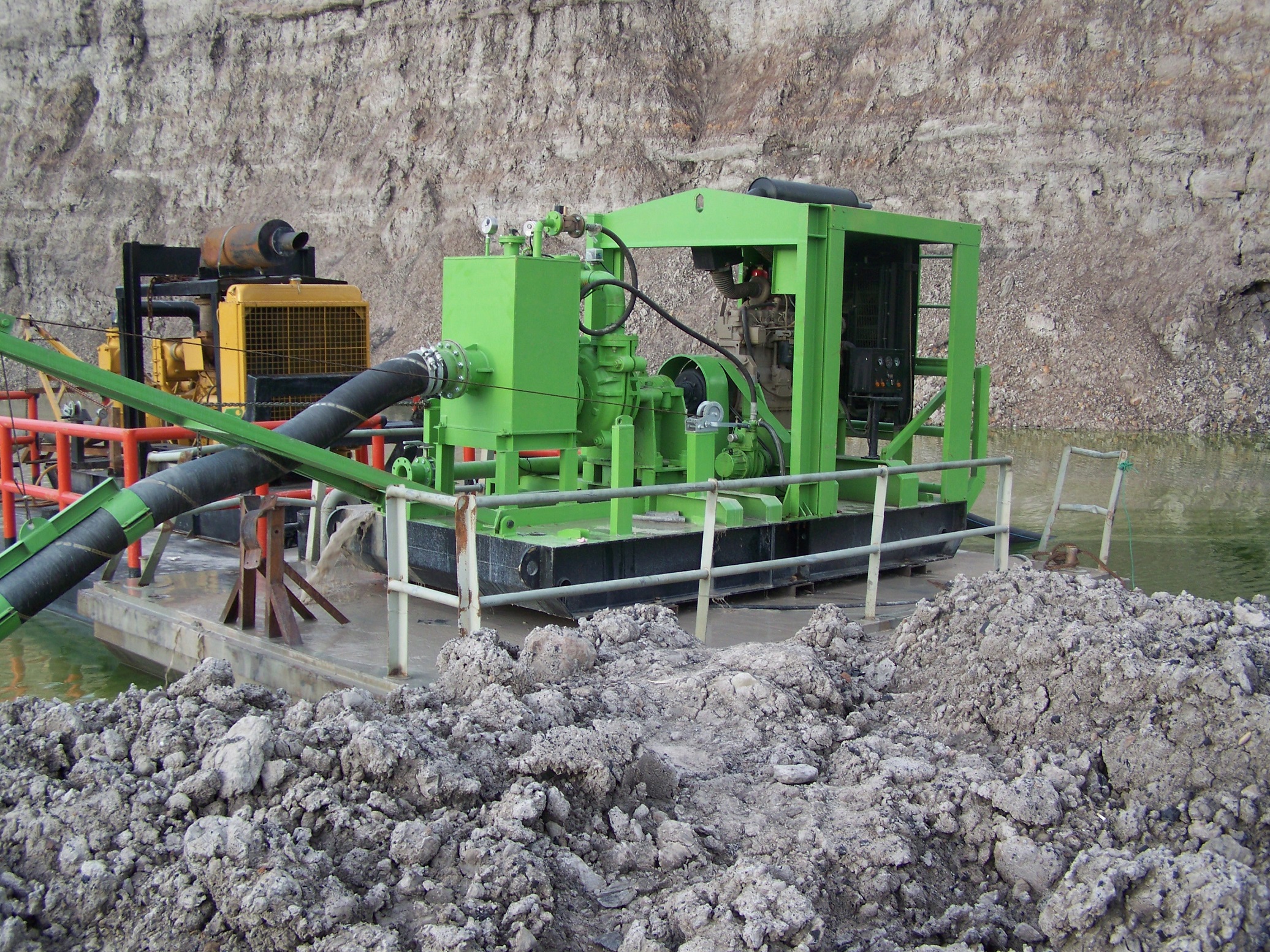

Clients: Mongolia Copper Mine

DESCRIPTION ：

Product model: 150NP-AH slurry pump

Flow rate=400m3/h:  Head=40m:  efficiency=67%

Rotating speed=940rpm

Installation location: Accident pool

Installation time: June 20, 2018

Start working time: Mar. 1, 2019

Detail: Diesel engine, direct connection，adding water diversion tank , suck the slurry from low to high. The pump has thick wear parts and is equipped with heavy bracket,which is suitable for transporting strong abrasion high concentration slurries or low concentration high head slurries. It also can be installed in multistage series within the maximum allowable working pressure. Widely used in metallurgy, mining, petroleum, chemical, coal, power, transportation, river dredging, building materials and municipal engineering departments

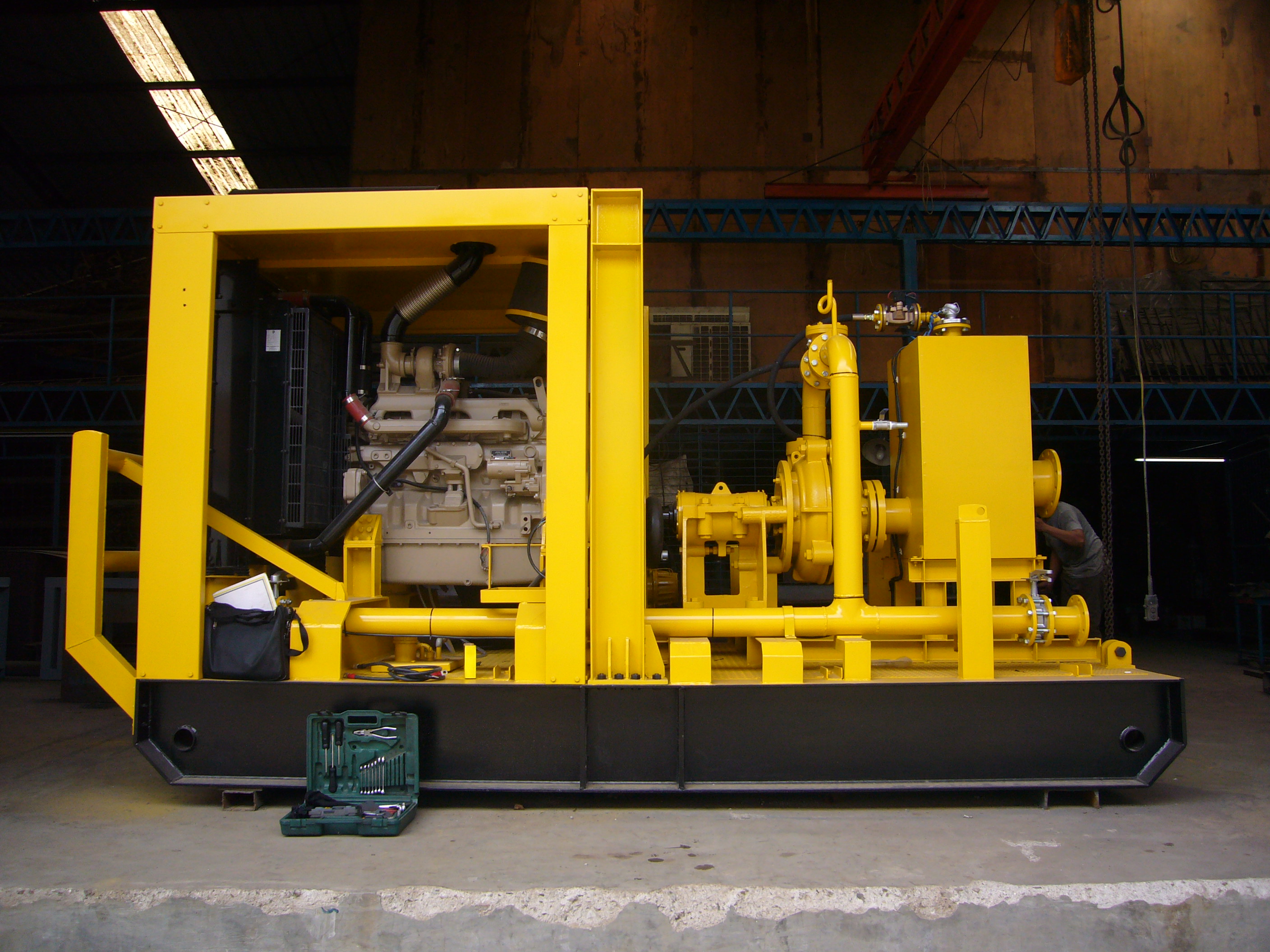

Clients: Brazil Gold Mine

DESCRIPTION ：

Product model: 75NP-AH slurry pump

Flow rate=100m3/h: Head=45m: efficiency=64%

Rotating speed=1950rpm

Installation position: Portable pump set

Installation time: Aug.20, 2019

Start working time: Sep.15, 2019

Detail: Diesel engine, direct connection. The whole pump unit with water diversion tank is easy to install on site . It is powered by a diesel engine and requires no power. Widely used in metallurgy, mining, petroleum, chemical, coal, power, transportation, river dredging, building materials and municipal engineering departments.

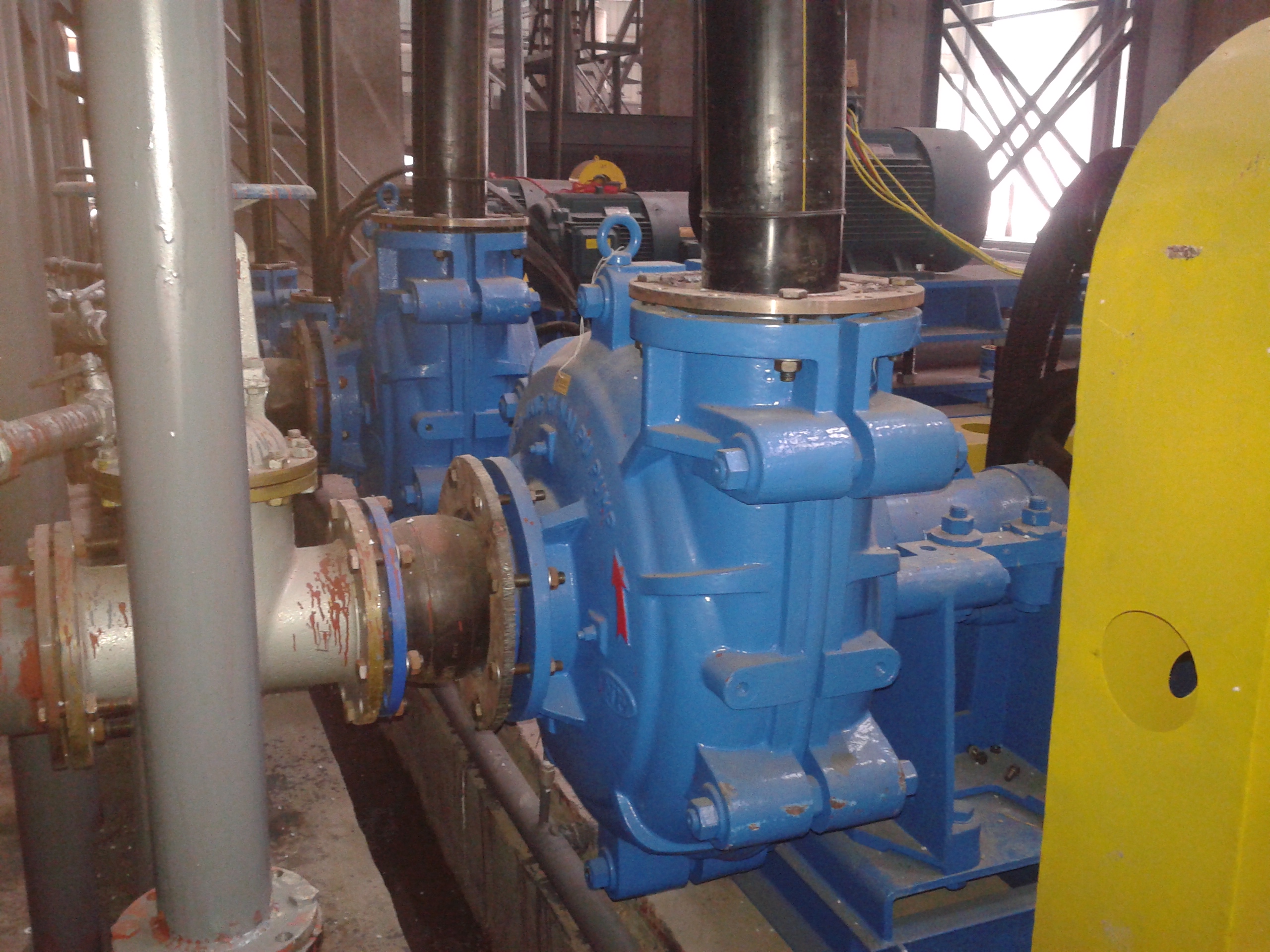

Clients: China Ceramic Raw Materials Factory

DESCRIPTION ：

Product model: 100NP-AH slurry pump

Flow rate=280m3/h: Head=48m: efficiency=66%

Rotating speed=1480rpm

Installation location: Mud Slurry PoolInstallation time: Oct. 20, 2019Start working time: Nov. 5, 2019Detail: Diesel engine, direct connection.The outlet can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

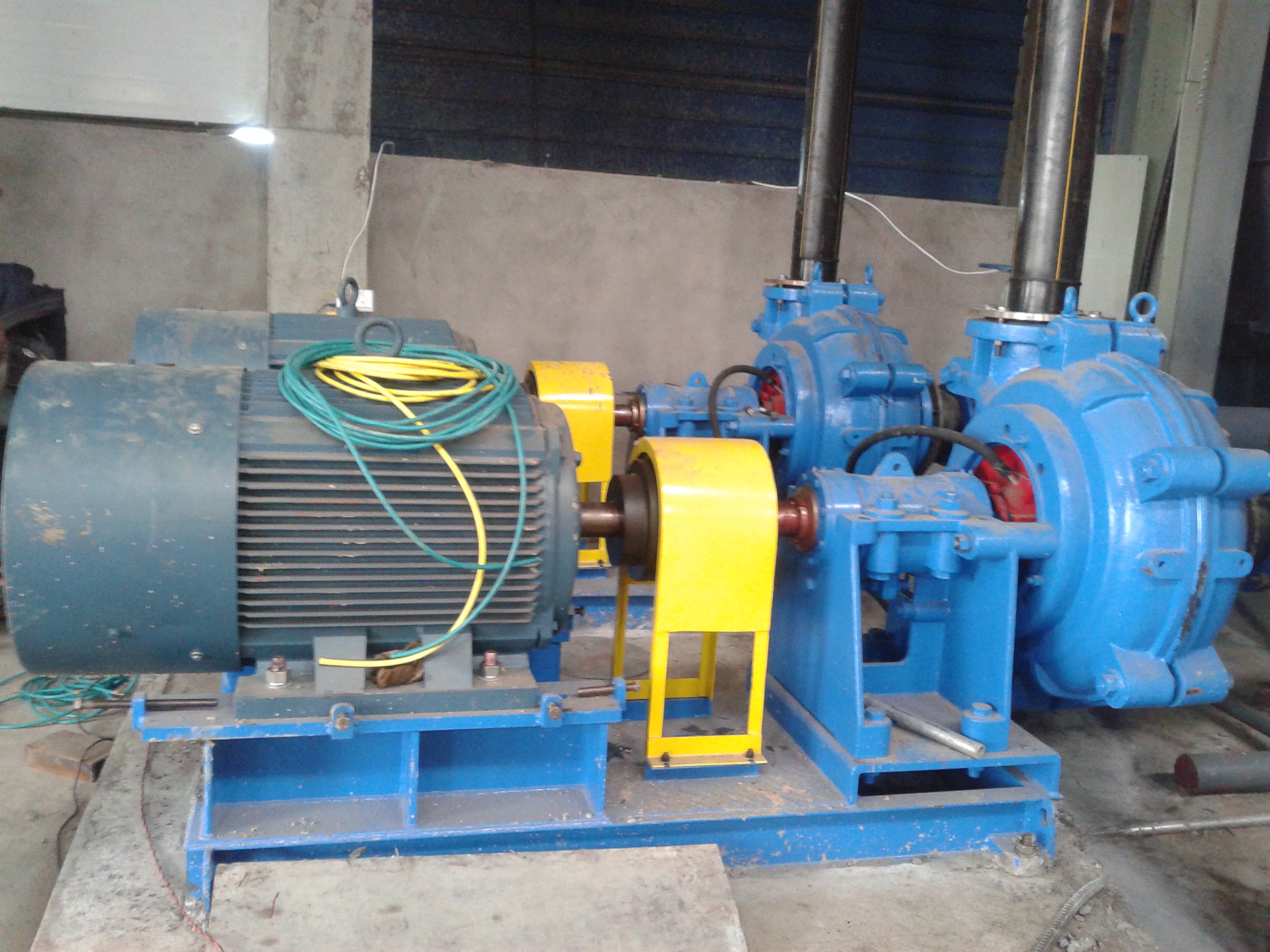

Clients: Mongolia Copper Mine

DESCRIPTION ：

Product model: 200NP-AH slurry pump

Flow rate=850m3/h: Head=58m: efficiency=66.5%

Rotating speed=840rpm

Installation position: Copper flotation column tailings pump

Installation time: May 10, 2016Start working time: Aug. 10, 2016Detail: The outlet is vertically upwards and ZVz drive. The pump casing adopts a double-layer structure, which is convenient for disassembly and assembly. The wet end parts are made of high chromium wear-resistant alloy material, which is wear and corrosion-resistant.

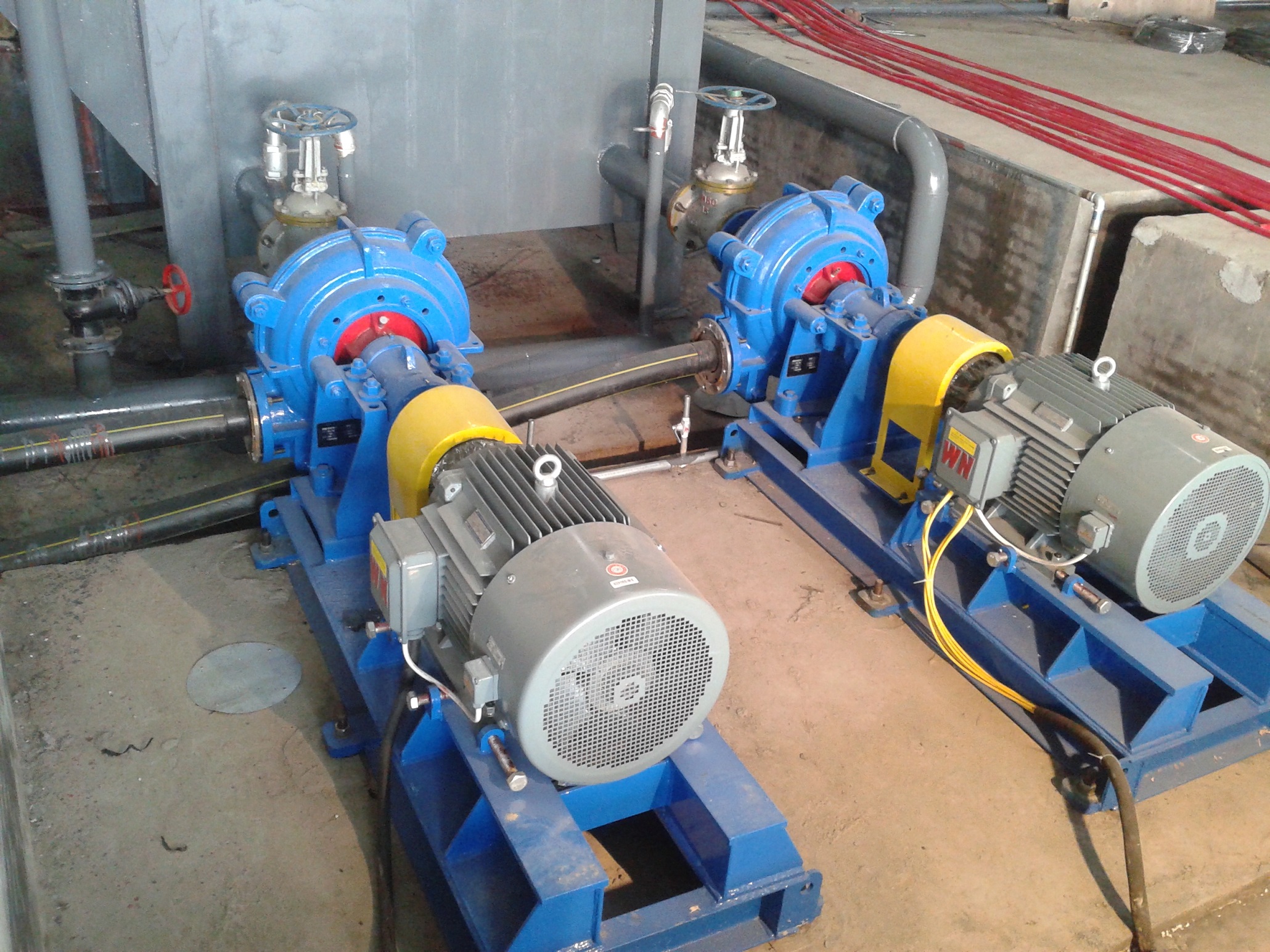

Clients: Zimbabwe Lithium Mine

DESCRIPTION ：

Product model: 200NP-AH slurry pump

Flow rate=620m3/h: Head=40m: efficiency=65%

Rotating speed=690rpm

Installation position: Cyclone feeding

Installation time: May 15, 2017Start working time: Aug. 12, 2017

Detail: The outlet is vertically upwards and DCz drive. The pump adopts a double casing structure and the wet end parts are made of high chromium wear-resistant alloy material, which is wear-resistant and corrosion-resistant.
