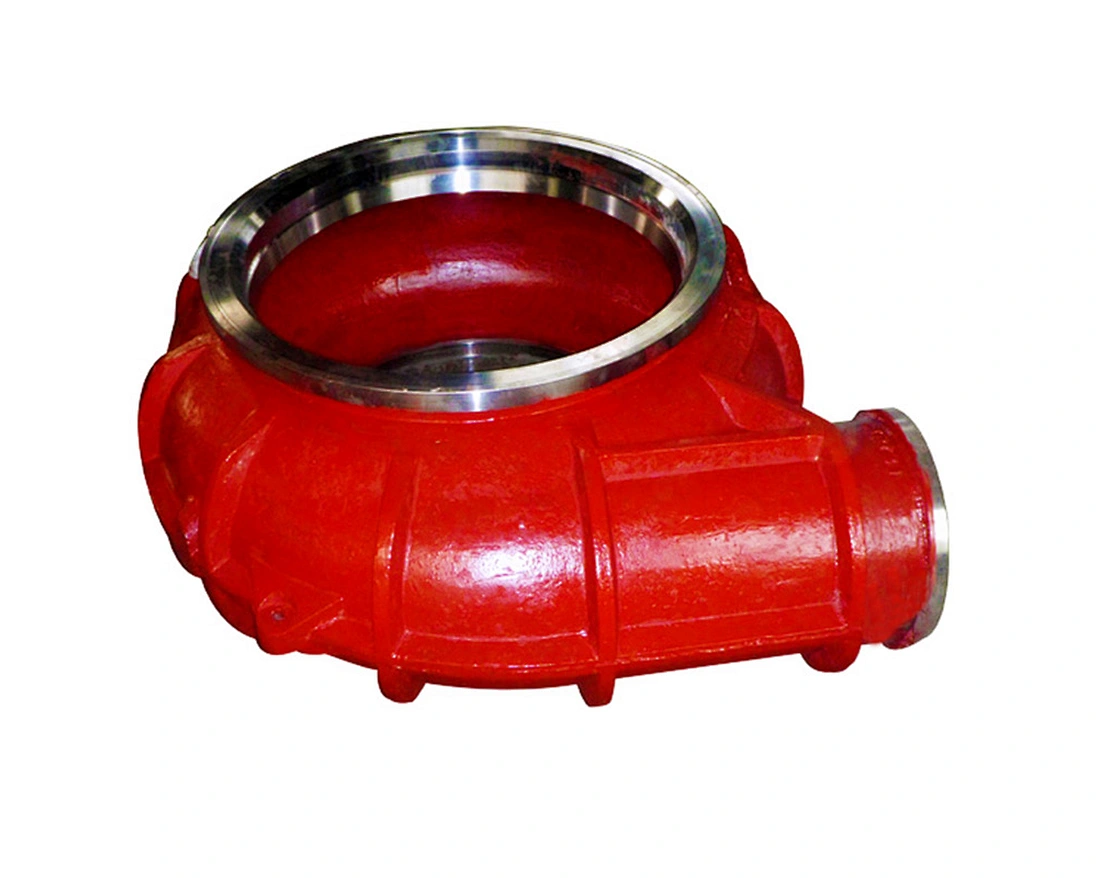

AHigh Chrome Slurry Sand Pump Casing is a curved funnel increasing in area to the discharge port.It is often used with impeller pumps.As the area of the cross-section increases,the volute reduces the speed of the liquid and increases the pressure of the liquid.The main purposes of a volute casting is to help balance the hydraulic pressure on the shaft of the pump.

The Materials of the volute liner are NA05,NA49,NA33,NA61,Natural Rubber,Polyurethane,Ceramic etc according to different working conditions.

Except the standard Volute Liner, we can do OEM and ODM service if client provide us drawings or samples.

Partial list of Pump Casing available for the contemporary and legacy OEM styles

NP-NA Slurry Pump Liners Style
1.5/1B-NAH 2/1.5B-NAH 3/2C-NAH 3/2CC-NAH 4/3C-NAH 4/3CC-NAH 4/3D-NAH 4/3DD-NAH 6/4D-NAH 6/4DD-NAH 6/4E-NAH 6/4EE-NAH 8/6E-NAH 8/6EE-NAH 8/6F-NAH 8/6FF-NAH 8/6R-NAH 10/8ST-NAH 10/8F-NAH 10/8FF-NAH 12/10ST-NAH 12/10G-NAH 12/10F-NAH 12/10FF-NAH 14/12ST-NAH 14/12G-NAH 14/12FF-NAH 14/12F-NAH 16/14TU-NAH 20/18TV-NAH

HH Slurry Pump Liners Style

1.5/1C-HH 3/2D-HH 3/2DD-HH 4/3E-HH 4/3EE-HH 6/4F-HH 6/4FF-HH 6/4x- HH 6S-H 8/6S-H 8/6X-H 6S-HP 8/6S-HP 8/6X-HP

SP Slurry Pump Liners Style

40PV-SP 65QV-SP 100RV-SP 150SV-SP 200SV-SP 250SV-SP

G Gravel Sand Pump Liners style

6/4D-G 6/4DD-G 6/4E-G 8/6E-G 8/6EE-G 10/8F-G 10/8FF-G 10/8S-G 12/10F-G 12/10FF-G 12/10G-G 14/12F-G 14/12FF-G 14/12G-G 10/8S-GH 10/8F-GH 10/8FF-GH 12/10G-GH 12/10F-GH 12/10FF-GH​ 14/12G-G 14/12T-G 18/16 T-G

Material
