WN Dredge Pump Shijiazhuang

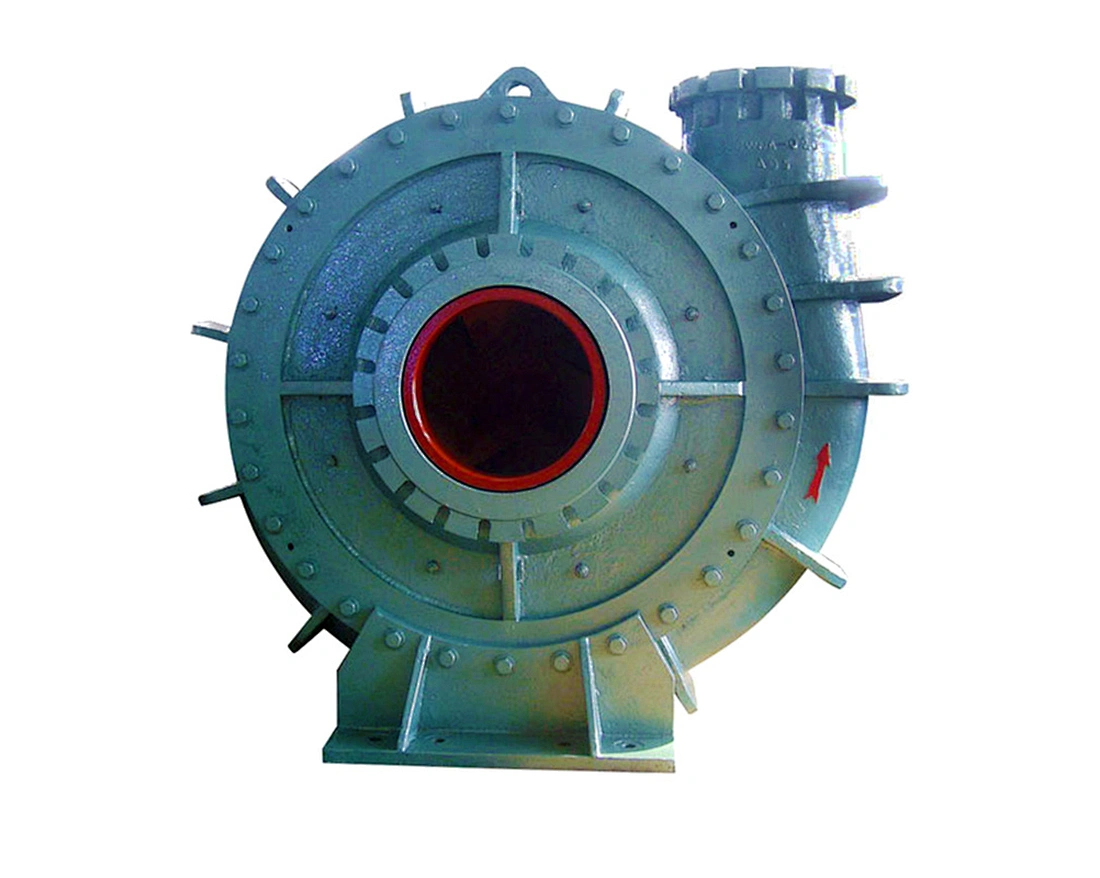

NP-WN Dredge Pump

Naipu® NP-WN dredging pump is single-stage single-suction cantilever horizontal centrifugal pump with advantages of light weight ,good wear-resistant ,super dredging performance ,perfectly suited for the dredge on the whole construction ,high multiple economy benefits and so on .It throughout meets requirements of the dredge to dredging pumps .The pump mainly consists of the pump head , gearbox specifically for the dredging pump ,high elastic coupling and supervisor system of the driving device for the dredge.

NP-WN

Delivery EXW ,FOB , CIF

minimum order 1 set

Supply Ability 1000set / Month

Country of Origin Shijiazhuang , China

Stock Time 15-25Day

Quantity:

WN Dredging Pump is a new type of sludge pump researched &manufactured by Shijiazhuang naipu pump co.,ltd, aiming at the dtedging and damming of the river and seas.

Naipu® NP-WN dredge pump is single-stage single-suction cantilever horizontal centrifugal pump with advantages of light weight ,good wear-resistant ,super dredging performance ,perfectly suited for the dredge on the whole construction ,high multiple economy benefits and so on .It throughout meets requirements of the dredge to dredging pumps .The pump mainly consists of the pump head , gearbox specifically for the dredging pump ,high elastic coupling and supervisor system of the driving device for the dredge.

Strongly wear resistant casting alloy iron, whose hardness is not less than 58 HRC, adopted for the casting impeller ,front liner and rear liner of wet parts.

Construction & Features

1. Advanced hydraulic model , CAD Three-dimension design, High efficiency and obvious energy-saving.

2. Large dredging depth, high density of dredging mud , good NPSH and stronger suction lift ablity.

3 Strong though-put. The pump can persistently discharge gravel, high plastic soil lump and so on

4 .The pump can be directly matched with either motor or diesel engine

5. Wide application, it can be used in various kinds of soil quality

6. Little Hydraulic loss, High efficiency and low oil-consumption

7. Steady operating, little vibration, low noise

8. Simple & Reliable construction, easily disassembly& assembly, convenient to maintenance

9. Long operating life of parts

10. Good NPSH Performance , Strong suction life , large dredging depth, high density of dredging sand mud

Naipu® WN Dredge Pump Performance Parameter

Model	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Inlet Dia. (mm)	Outlet Dia. (mm)	Max. Particles (mm)
200WND	600-800	20-40	700-900	60-65	<4.5	250	200	178
200WN	750-1000	40-65	700-850	70-72	<4	250	200	180
250WND	950-1100	20-40	500-700	65-70	<4	300	250	220
250WN	1100-1300	40-65	500-650	70-74	<4	350	250	144
300WND	1500-1800	20-40	400-600	65-68	<4	350	300	241
300WN	1800-2200	40-65	400-550	74-78	<4	450	300	241
350WN	2600-3000	40-65	400-550	74-78	<4.5	450	350	245
400WN	2800-3200	20-40	400-550	74-78	<4.5	450	400	250
450WN	3200-3850	40-67	350-500	76-80	<4.5	600	450	354
500WND	3600-4200	20-40	220-320	72-75	<4.8	600	500	330
500WN	4500-5500	40-65	350-450	78-80	<4.8	650	500	250
600WN	5000-9000	55-80	280-420	81-85	<6	660	600	220
700WN	8000-12000	60-85	280-380	83-85	<6	760	700	280
900WN	12000-19000	50-75	280-330	85-87	<6	960	900	320
1000WN	16000-25000	23-76	181-290	85-87	<6	1200	1000	350
