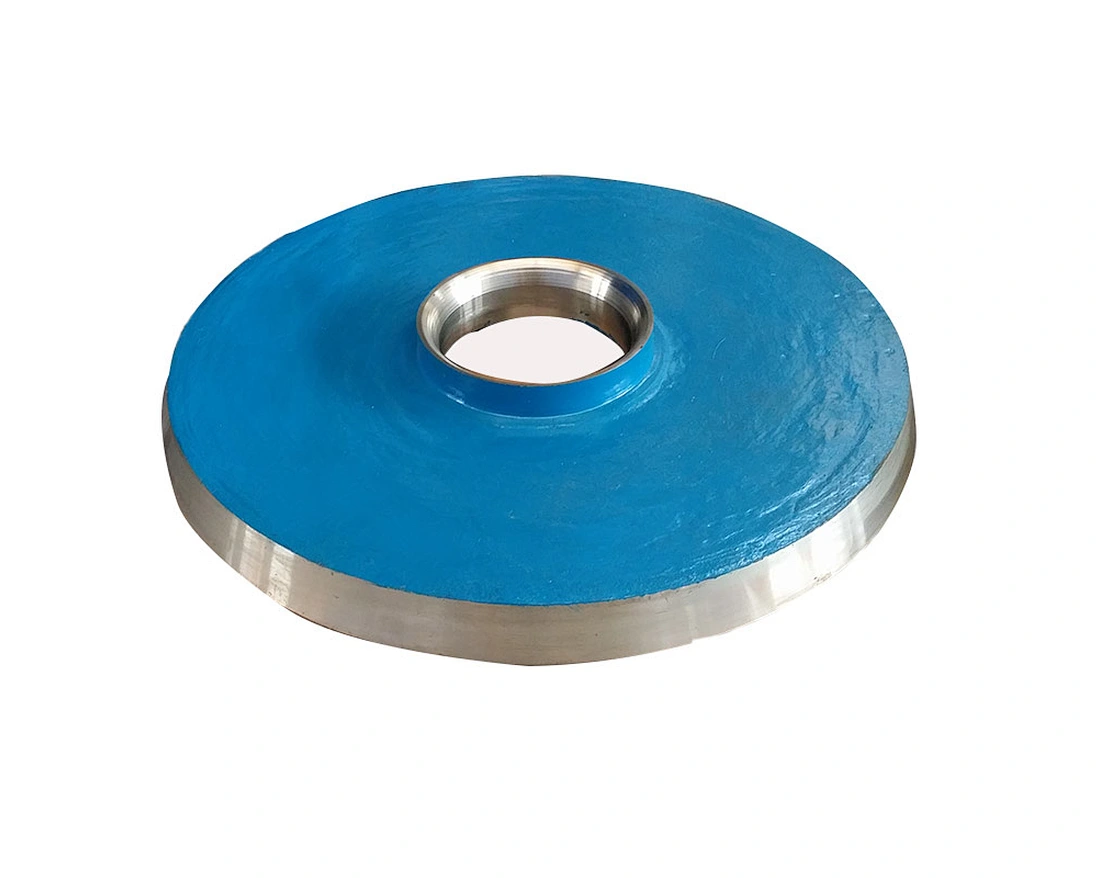

Frame Plate Liner Insert is one of wet parts of slurry pumps,it is also called back liner since its position in slurry pump.It forms a pump chamber with throat bush and volute liner where the slurry will flow through them.
The Materials of the Frame Plate Liner Insert are NA05,NA49,NA33,NA61,Natural Rubber,Polyurethane,Ceramic etc according to different working conditions.
Except the standard Frame Plate Liner Insert, we can do OEM and ODM service if client provide us drawings or samples.
Partial list of Frame Plate Liner Insert available for the contemporary and legacy OEM styles
NP-AH Slurry Pump Liners Style
1.5/1B-NAH 2/1.5B-NAH 3/2C-NAH 3/2CC-NAH 4/3C-NAH 4/3CC-NAH 4/3D-NAH 4/3DD-NAH 6/4D-NAH 6/4DD-NAH 6/4E-NAH 6/4EE-NAH 8/6E-NAH 8/6EE-NAH 8/6F-NAH 8/6FF-NAH 8/6R-NAH 10/8ST-NAH 10/8F-NAH 10/8FF-NAH 12/10ST-NAH 12/10G-NAH 12/10F-NAH 12/10FF-NAH 14/12ST-NAH 14/12G-NAH 14/12FF-NAH 14/12F-NAH 16/14TU-NAH 20/18TV-NAH
HH Slurry Pump Liners Style
1.5/1C-HH 3/2D-HH 3/2DD-HH 4/3E-HH 4/3EE-HH 6/4F-HH 6/4FF-HH 6/4x- HH 6S-H 8/6S-H 8/6X-H 6S-HP 8/6S-HP 8/6X-HP
SP Slurry Pump Liners Style
40PV-SP 65QV-SP 100RV-SP 150SV-SP 200SV-SP 250SV-SP
G Gravel Sand Pump Liners style
6/4D-G 6/4DD-G 6/4E-G 8/6E-G 8/6EE-G 10/8F-G 10/8FF-G 10/8S-G 12/10F-G 12/10FF-G 12/10G-G 14/12F-G 14/12FF-G 14/12G-G 10/8S-GH 10/8F-GH 10/8FF-GH 12/10G-GH 12/10F-GH 12/10FF-GH 14/12G-G 14/12T-G 18/16 T-G
Material
Material Code | Material Name | Applications |
Abrasion Resistant Alloy | ||
NA04 | High Chrome 24% Cr | Impeller, Liners, Stuffing Box, Expeller Ring, Expeller, etc. |
NA05 | High Chrome27% Cr | Impeller, Liners, Expeller Ring, Expeller, etc. |
NA06 | Ni-Hard 4 | Impeller, Liners, etc. |
NA07 | 15/3 Cr-Mo Alloy | Impeller, Liners, etc. |
NA12 | High Chrome 30% Cr | Impeller, Liners, etc. |
NA25 | Ni-Cr-Mo Alloy | Impeller, Liners, etc. |
NA49 | 28% Cr, Low C | Impeller, Liners, etc. |
NA51 | 36% Cr, Low C | Impeller, Liners, etc. |
* NaiPu® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
