Slurry pump impeller can play an extremely important role in the operation of slurry pump. The slurry pump impeller is easy to be worn out, so we search for the special materials to prolong the lifespan of impeller.

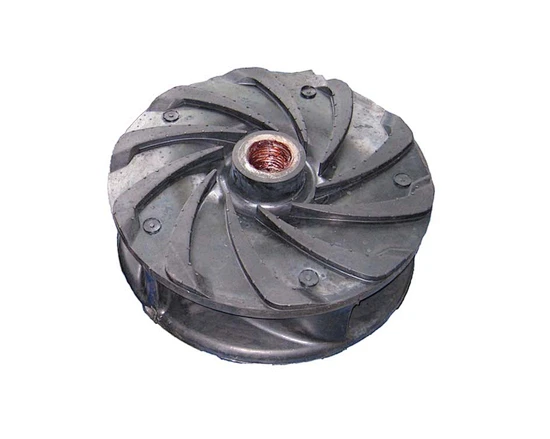

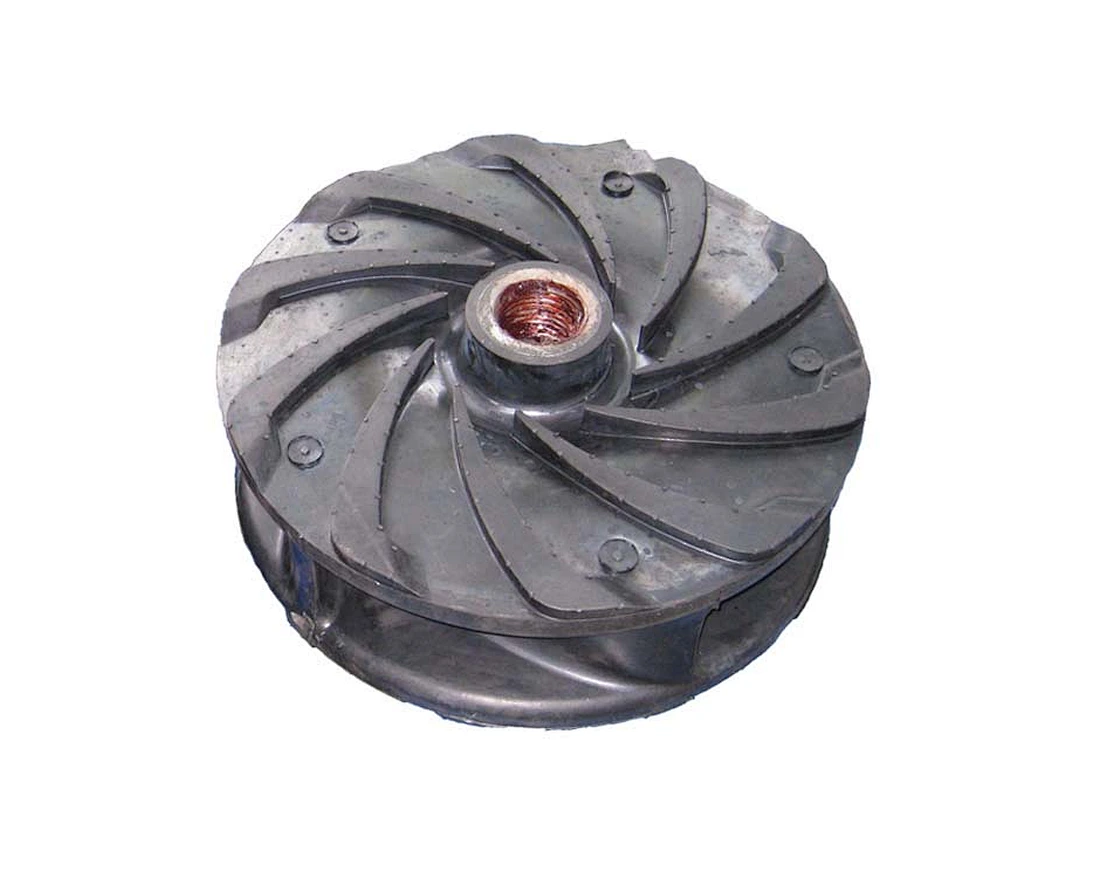

Rubber Slurry Pump impellers are used to deal with the corrosive slurry with blunt particles. They are made of natural rubber, synthetic rubber, EPDM Rubber, Nitrile Rubber, Fluoroelastomer or any other as you required.
Naipu rubber slurry pump impellers canbe totally interchange with some famous pump manufactures, which are 100% REVERSE INTERCHANGEABLE, no need to change your stock.
MainRubber Material Introduction:
• NR08 is a black natural rubber, of low to medium hardness. NR08 is used for impellers where superior erosive resistance is required in fine particle slurries.
• NR26 is a black, soft natural rubber. NR26 is used for lines where superior erosion resistance to all other materials in fine particle slurry applications.
• NR33 is a premium grade black natural rubber of low hardness and is used for cyclone and pump liners and impellers where its superior physical properties give increased cut resistance to hard, sharp slurries.
• NR55 is premium grade black natural rubber, it is suitable for severe erosive fine particle slurries.
Rubber Impellers | The leading competitor Slurry Pumps |
B1052R55 | 1.5/1B-NAHR |
B15127R55 | 2/1.5B-NAHR |
C2147R55 | 3/2C-NAHR |
D3147R55 | 4/3C-NAHR, 4/3D-NAHR |
E4147R55 | 6/4D-NAHR, 6/4E-NAHR |
F6147R55 | 8/6E-NAHR, 8/6F-NAHR, 8/6R-NAHR |
FAM8147R55 | 10/8F-NAHR |
G8147R55 | 10/8ST-NAHR |
FAM10147R55 | 12/10F-NAHR |
G10147R55 | 12/10ST-NAHR |
FAM12147R55 | 14/12F-NAHR |
G12147R55 | 14/12ST-NAHR |
32052R55 | 50B-LR |
43052R55 | 75C-LR |
64114R55 | 100D-LR |
86127R55 | 150E-LR |
108127R55 | 200F-LR |
SL30147R55 | 300S-LR |
SL35147R55 | 350S-LR |
STL40147R55 | 400ST-LR |
STL45147R55 | 450ST-LR |
TUL55147R55 | 550TU-LR |
F8147R55 | 10/8E-MR, 10/8F-MR, 10/8R-MR |
* NaiPu® is a registered trademark and does not represent or is not in any way affiliated with Warman® of Weir Minerals Group. All names,numbers, symbols and descriptions are used for reference purpose only and do not imply that any pumps or parts listed is the product of Warman Pumps.
